Secondary Impact Crusher
HS 7
| Capacity (tph) | Feed Opening (mm) | Rotor Parameter (Dia. x Width) | Rotor Speed (rpm) | Power Rating (kW) | Weight(MT) |
|---|---|---|---|---|---|
| 50 - 75 | 720 x 500 | 1000 x 700 | 600 | 75 - 90 | 7.5 |
.webp "apollo | horizontal shaft impact crusher | HS10")

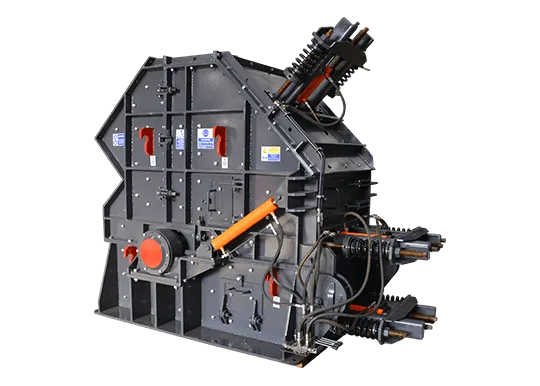

Secondary Impact Crusher
HS 10
| Capacity (tph) | Feed Opening (mm) | Rotor Parameter (Dia. x Width) | Rotor Speed (rpm) | Power Rating (kW) | Weight(MT) |
|---|---|---|---|---|---|
| 75 - 120 | 1070 x 600 | 1200 x 1000 | 600 | 90 - 132 | 10.5 |
.webp "apollo | horizontal shaft impact crusher | HS12")

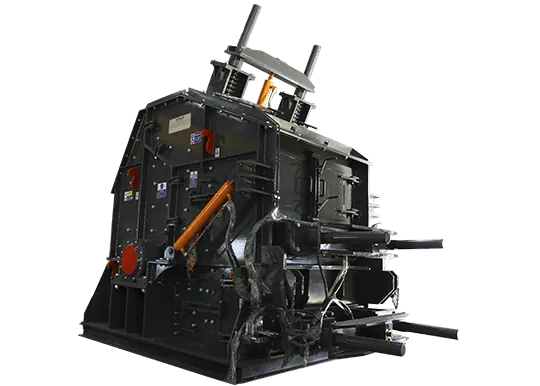

Secondary Impact Crusher
HS 12
| Capacity (tph) | Feed Opening (mm) | Rotor Parameter (Dia. x Width) | Rotor Speed (rpm) | Power Rating (kW) | Weight(MT) |
|---|---|---|---|---|---|
| 120 - 150 | 1200 x 700 | 1200 x 1200 | 600 | 110 - 160 | 12.5 |
.webp "apollo | horizontal shaft impact crusher | HS14")

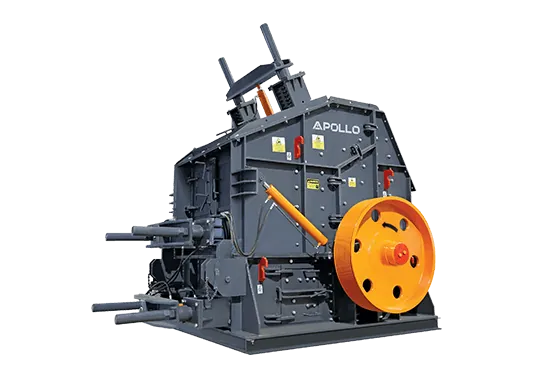

Secondary Impact Crusher
HS 14
| Capacity (tph) | Feed Opening (mm) | Rotor Parameter (Dia. x Width) | Rotor Speed (rpm) | Power Rating (kW) | Weight(MT) |
|---|---|---|---|---|---|
| 150 - 230 | 1440 x 700 | 1300 x 1420 | 600 | 200 - 225 | 19 |
.webp "apollo | horizontal shaft impact crusher | HS16")

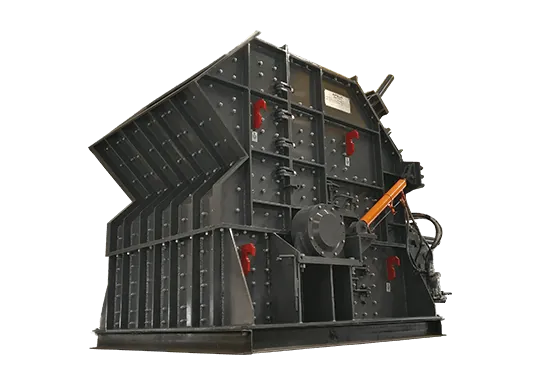

Secondary Impact Crusher
HS 16
| Capacity (tph) | Feed Opening (mm) | Rotor Parameter (Dia. x Width) | Rotor Speed (rpm) | Power Rating (kW) | Weight(MT) |
|---|---|---|---|---|---|
| 230 - 300 | 1620 x 750 | 1300 x 1620 | 600 | 200 - 250 | 22 |
.webp)
HS 7
.webp)
HS 10
.webp)
HS 12
.webp)
HS 14
.webp)
HS 16
Main Features
Apollo Secondary Impactors are built with the help of state of art CNC machines. Stringent quality control process ensures that the products are delivered ready to run and trouble free. The Impact Crushers manufactured by Apollo evolved from world famous GERMAN TECHNOLOGY and is best in the class in terms of productivity & reliability. They are employed for secondary crushing with feed size from 150 to 300 mm and capacities from 10 to 800 TPH. Hydraulically adjusted first apron. The second apron that basically determines the product size is hydraulically adjustable and equipped with distance plates. The third apron that increases the cubic shape of product is hydraulically adjustable and achieved lower percentage of oversize.
